Size marking on the case is the bare core dimension (OD × ID × H), not the cased or finished size.

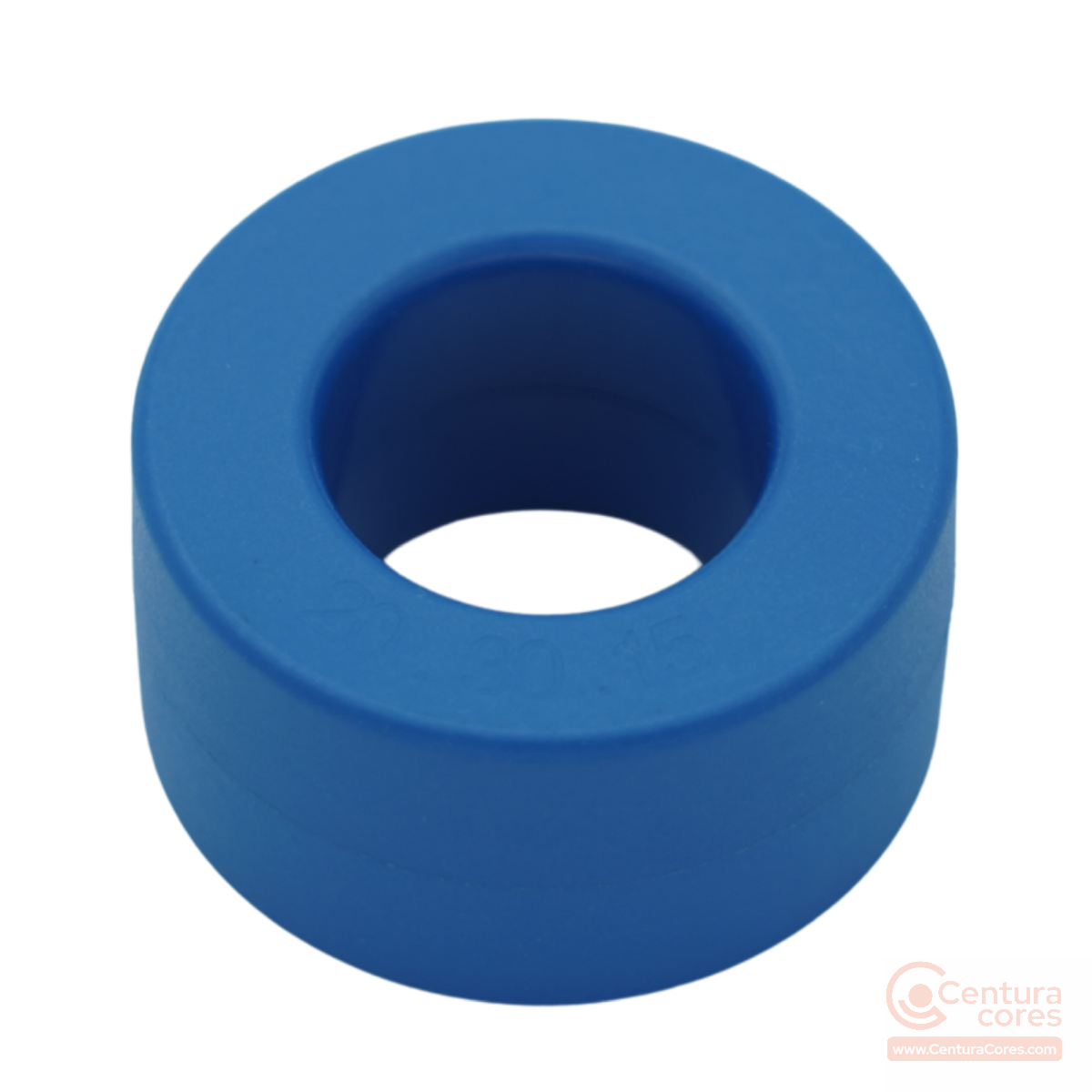

Nanocrystalline toroidal core 30×20×15 mm
30×20×15 mm nanocrystalline toroidal core, Blue PBT Class B 130C.
CCNT-030-020-015-MFBL is a 30×20×15 mm nanocrystalline toroidal core for high-accuracy CTs, medium-frequency power transformers, and protective relay CTs. Its 20 mm inner diameter supports practical secondary windings, while high-permeability nanocrystalline material helps achieve useful magnetizing inductance at low turns. Choose this size when winding window, magnetic area, and envelope must stay in balance for the target current or VA.
Former part number: CC-NC-CMC-004-30B
In stock
$23.09Pack of 3
$7.70 per piece
Choose a pack, set quantity up to 16 of this pack (48 pieces), then add to cart. When the cart has items, use the cart icon in the header to review them and keep shopping before checkout.
Loading checkout…
Volume pricing
Online packs are $10.00 minimum. Buy packs totaling under 50 pieces. 50+ is quoted.
| Pack / qty | Unit price | How to buy |
|---|---|---|
| Pack of 3 | $7.70 | Buy online |
| Pack of 5 | $7.29 | Buy online |
| Pack of 10 | $6.48 | Buy online |
| Pack of 25 | $5.40 | Buy online |
| 50+ pieces | Quoted | Request quote |
Technical Specifications
Bare core dimensions
Cased / finished dimensions
Magnetic properties
Finish and handling
Environmental

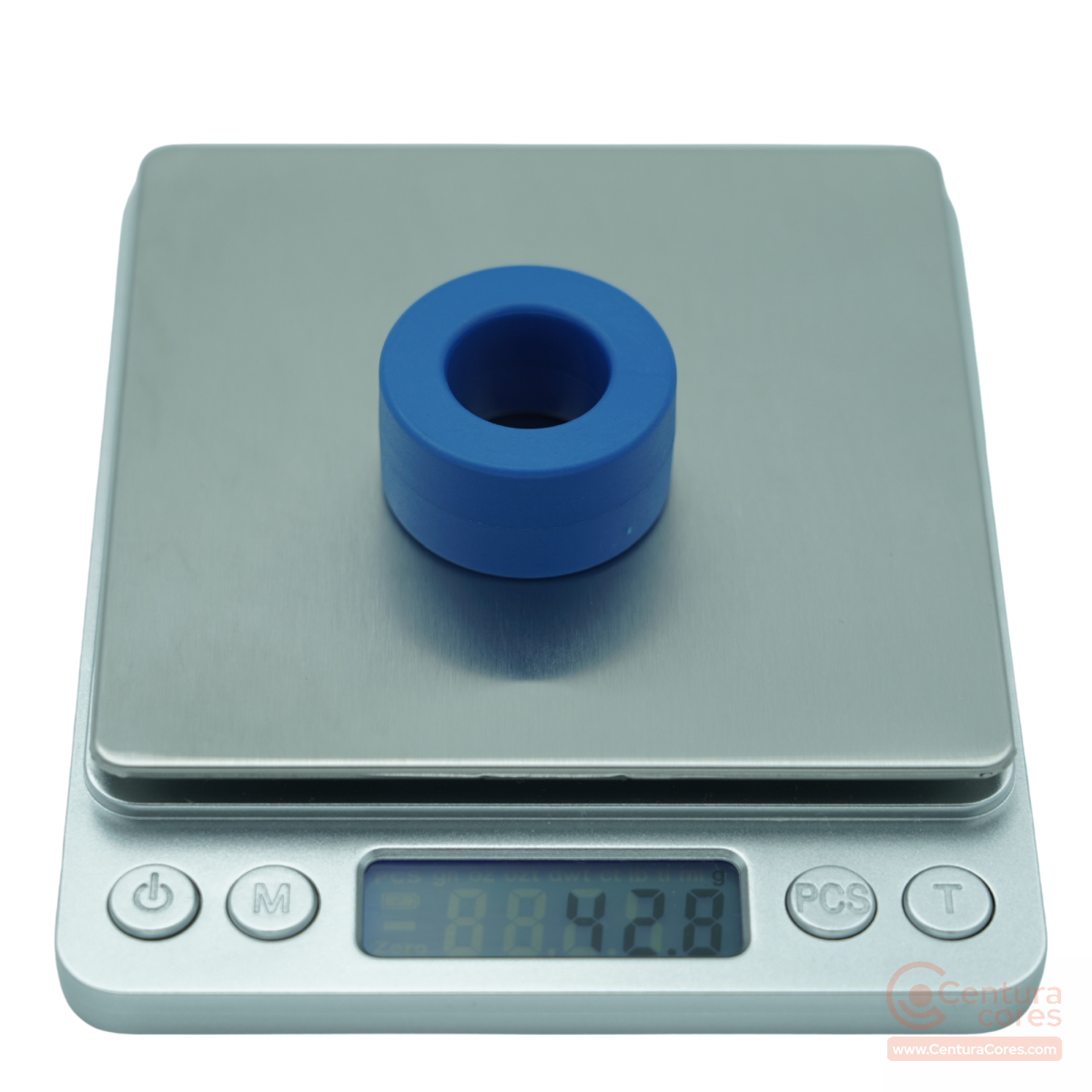

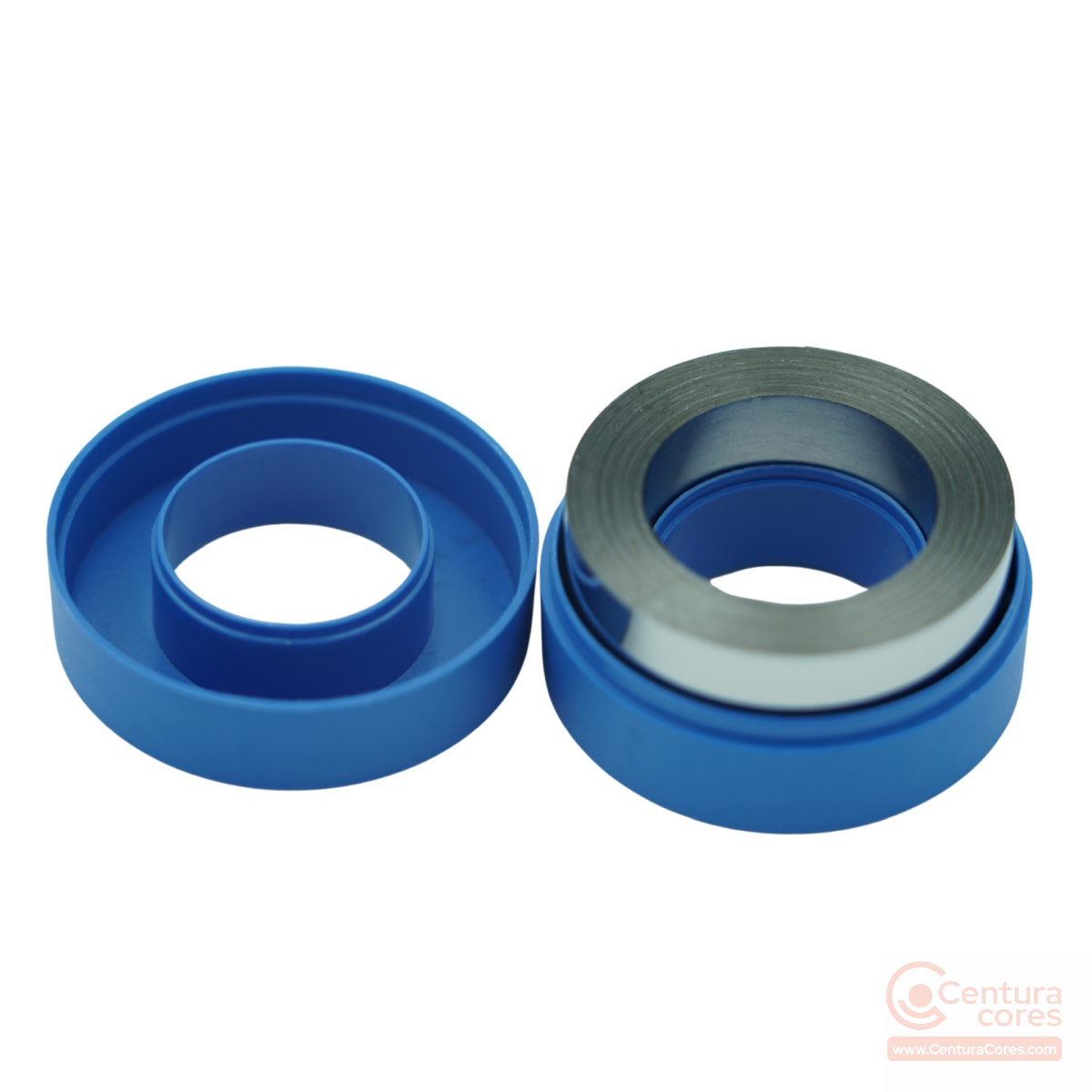

Product photos
Applications and selection
Applications
- high-accuracy CTs
- medium-frequency power transformers
- protective relay CTs
- ground-fault sensors
- high-accuracy/precision current transformers
- protection and metering-class CTs
- ground-fault/residual-current sensing transformers
When to choose this size
This 30×20×15 mm toroidal core is sized for high-accuracy CTs and related designs in the nearby size family. Step down to the 25×16×10 mm core when board space, enclosure height, or a tighter footprint matters more than winding room. If height is constrained, the 30×20×12 mm core keeps the same OD with a lower profile. Move up to the 40×25×15 mm core when you need a larger outer diameter, winding window, or higher throughput than this part can comfortably support. In short, pick CCNT-030-020-015-MFBL when your design for high-accuracy CTs fits this window and OD; pick a neighbor when compactness or power handling shifts the trade-off.
Winding notes
Magnetic calculations should use the bare 30×20×15 mm geometry (Ae 0.63 cm², Le 7.9 cm). The winding must fit the finished window: cased ID is 17.7 mm, not the 20 mm bare ID. Keep the winding distributed around the toroid to limit leakage and local heating. High permeability (μi 80,000) supports useful magnetizing inductance at practical turn counts; stay within 1.25 Tesla saturation and the -40°C to +130°C PBT Class B 130C limit.
Related application guides
Frequently asked questions
Are stated dimensions bare or cased?

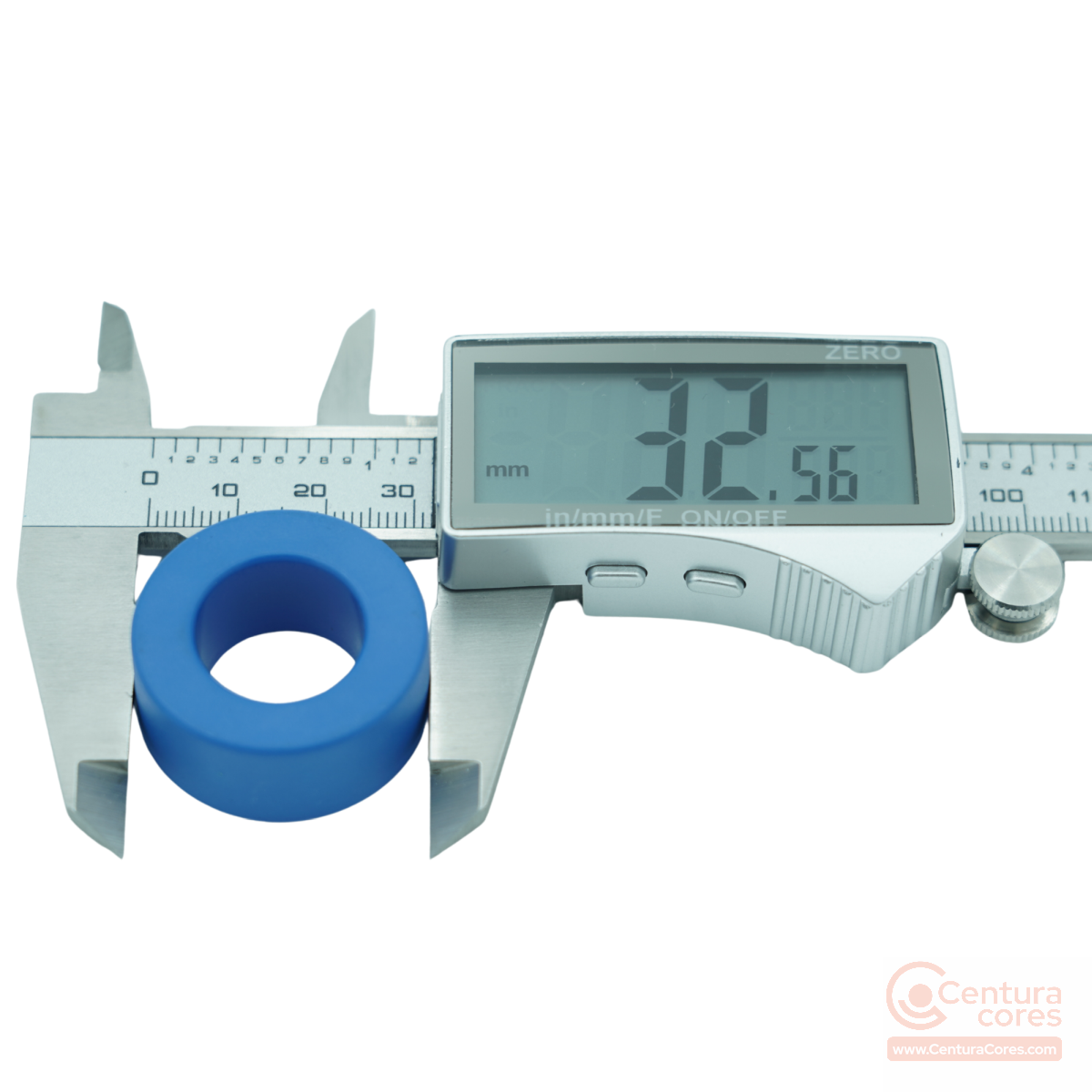

The 30×20×15 mm size marked on the case is the bare core (OD × ID × H). Finished cased size is 33.6 × 17.7 × 17.8 mm. Use bare dimensions with Ae and Le for magnetic design, and the finished inner diameter for winding clearance.
Is this core suitable for a current transformer?
Yes. It is a nanocrystalline core sized for high-accuracy CTs, including high-accuracy/precision current transformers. High permeability helps you reach useful secondary inductance with practical turns in a 30 mm OD.
When should I choose a different size instead?
Choose the 40×25×15 mm core when you need more winding window, heavier wire, or higher throughput. Choose the 25×16×10 mm core when board space or a smaller footprint matters more than this 30×20×15 mm envelope.
