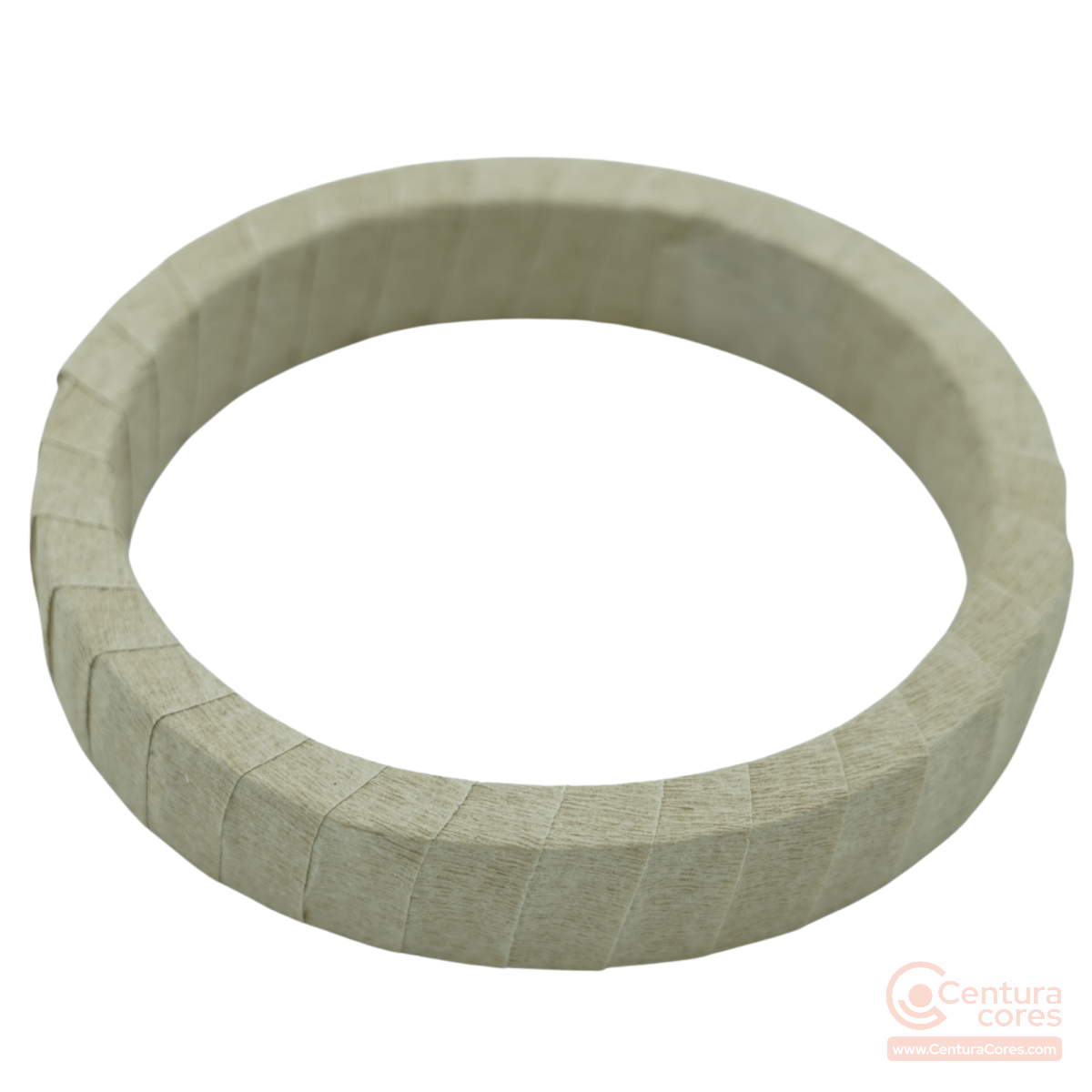

CenturaCores CCNOV-086-096-101-111-020-STBN nanocrystalline oval core.
CenturaCores CCNOV-086-096-101-111-020-STBN nanocrystalline oval core.
CCNOV-086-096-101-111-020-STBNST seriesIn stock

Nanocrystalline oval core 86×96×101×111×20 mm

86×96×101×111×20 mm nanocrystalline oval core, Brown Crepe tape.

CCNOV-086-096-101-111-020-STBN is a 86×96×101×111×20 mm nanocrystalline oval core with Brown Crepe tape.

In stock

Pack size

$43.741 piece

Choose a pack, set quantity up to 49 of this pack (49 pieces), then add to cart. When the cart has items, use the cart icon in the header to review them and keep shopping before checkout.

Loading checkout…

Request quote for 50+ pieces

Volume pricing

Online packs are $10.00 minimum. Buy packs totaling under 50 pieces. 50+ is quoted.

Pack / qtyUnit priceHow to buy
1 piece$43.74Buy online
Pack of 3$41.55Buy online
Pack of 5$39.37Buy online
Pack of 10$34.99Buy online
50+ piecesQuotedRequest quote
Request Quote Datasheet (PDF)

Technical Specifications

Bare core dimensions

Window A (ID A)86 mm
Window B (ID B)96 mm
Body A (OD A)101 mm
Body B (OD B)111 mm
Height (H)20 mm

Cased / finished dimensions

Window A (ID A)84 mm
Window B (ID B)94 mm
Body A (OD A)103 mm
Body B (OD B)112 mm
Height (H)21 mm
Tolerance–

Magnetic properties

MaterialNanocrystalline
SeriesST
Effective area Ae–
Mean path length Le–
Saturation flux density Bs1.25 Tesla
Initial permeability μi80,000
Curie temperature560 °C
Continuous working temperature-40°C to +130°C

Finish and handling

Finish typewrap
SystemCrepe tape
ColorBrown
Temperature class–
Net weight300 g

Environmental

Operating temperature-40°C to +130°C

Product photos

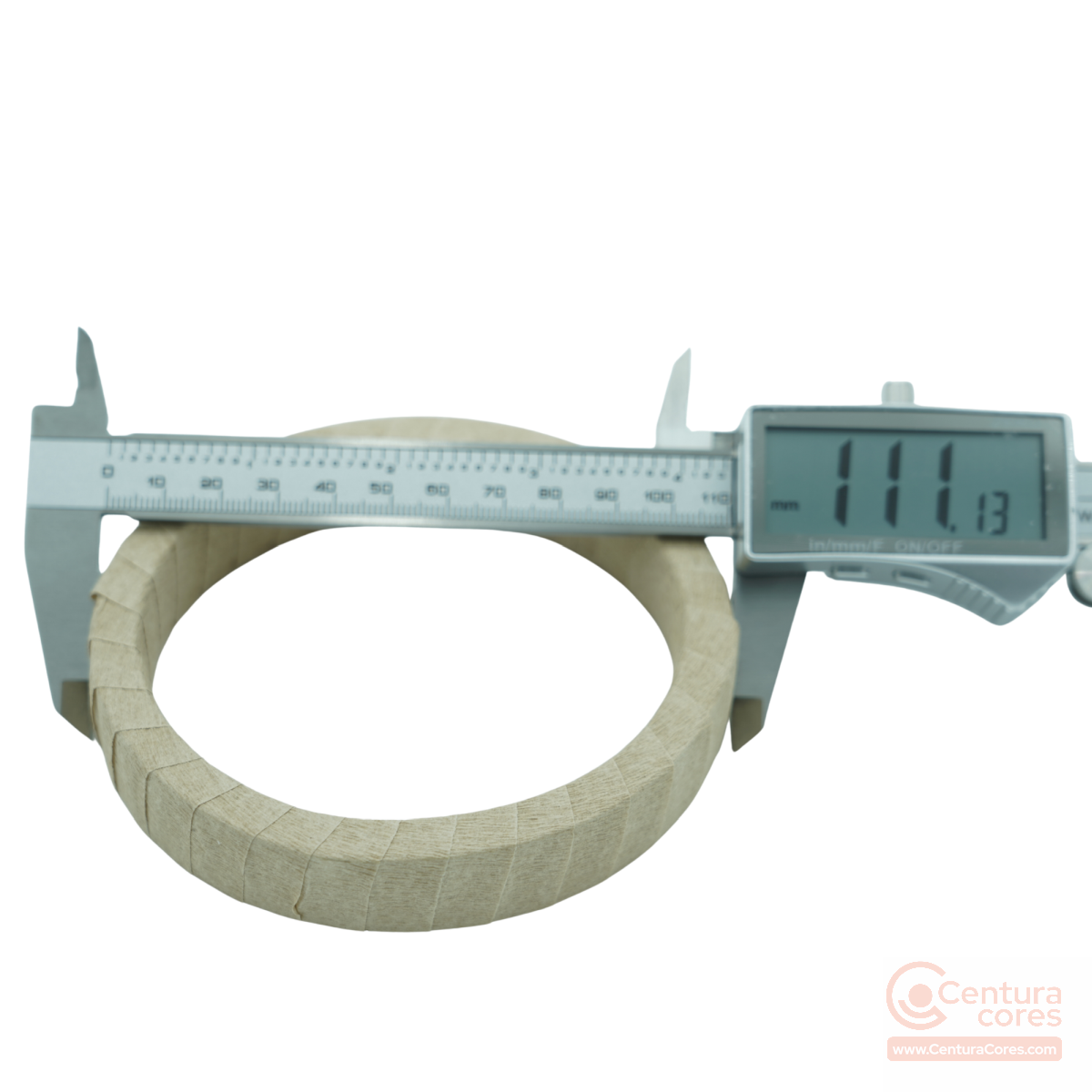

Dimension check of CenturaCores CCNOV-086-096-101-111-020-STBN nanocrystalline oval core.
Dimension check of CenturaCores CCNOV-086-096-101-111-020-STBN nanocrystalline oval core.

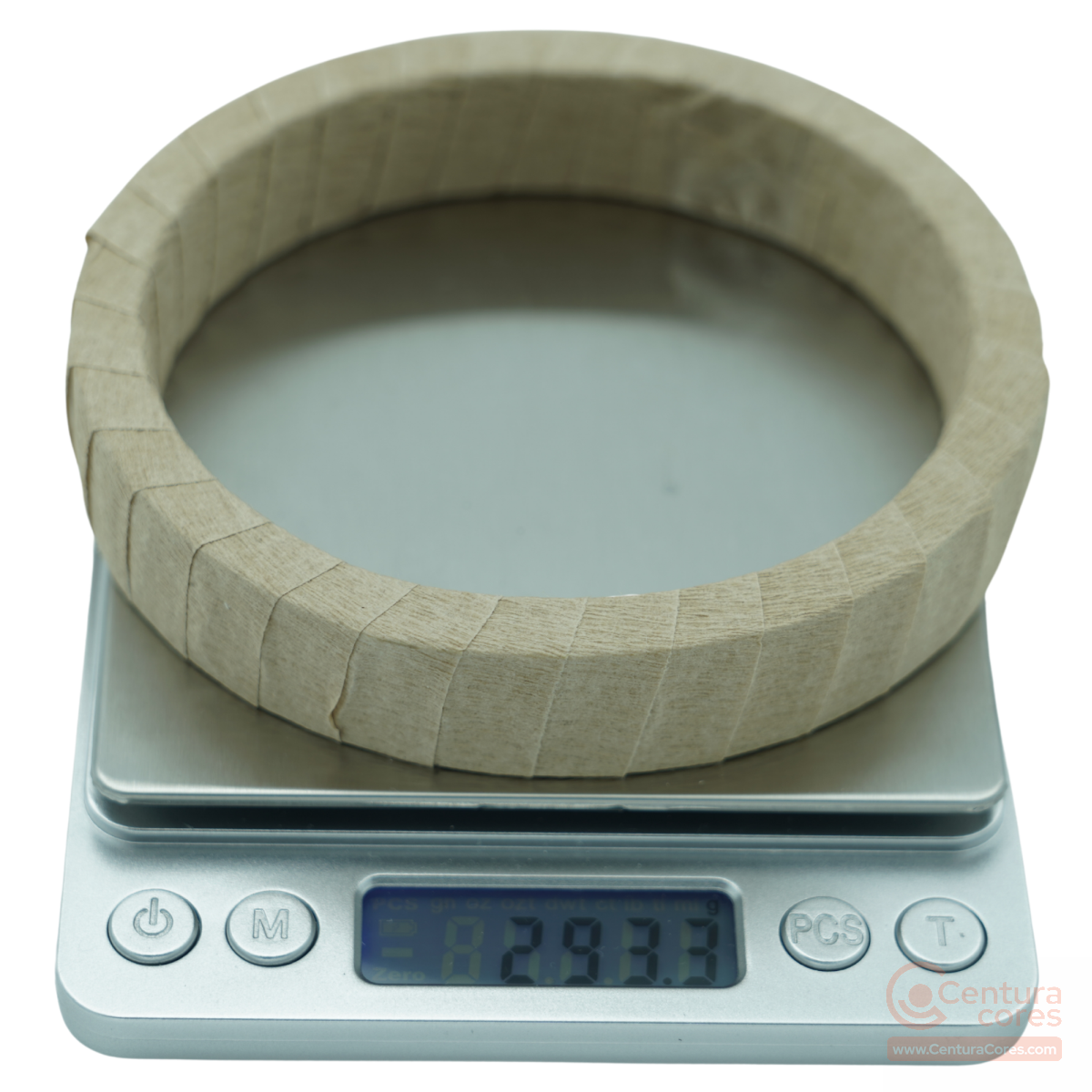

Scale check of CenturaCores CCNOV-086-096-101-111-020-STBN nanocrystalline oval core.
Scale check of CenturaCores CCNOV-086-096-101-111-020-STBN nanocrystalline oval core.

Applications and selection

Recommended usage

  • common-mode chokes
  • flat EMI filters
  • cable-bundle filters

DIY & R&D usage

  • DIY oval choke winding
  • benchtop EMI experiments
  • low-profile filter prototypes

Technical applications

  • stretched-window common-mode chokes
  • cable-bundle EMI filters
  • low-profile line filters

When to choose this size

Choose CCNOV-086-096-101-111-020-STBN when you need this 86×96×101×111×20 mm oval core. Use the bare dimensions for the magnetic path and the finished dimensions, when published, for winding clearance.

Winding notes

Magnetic calculations should use the bare 86×96×101×111×20 mm geometry. AL, Ae, and Le were not measured for this core. Saturation is 1.25 T.

Related application guides

Frequently asked questions

Are the stated dimensions bare or finished?

The size in the product name is the bare core. Finished dimensions are listed separately when they were measured.

Where is a core this size used?

This 86×96×101×111×20 mm oval core is a mildly stretched window for flat EMI filters and cable-bundle common-mode chokes. The 86×96 mm opening (84×94 mm finished) clears a small bundle or several windings in a lower profile than a round toroid of the same window area.

What finish is on this core?

This core is finished with Brown Crepe tape.

Need this core for your application?

Get pricing, availability, and winding support for CCNOV-086-096-101-111-020-STBN.
