Nanocrystalline rectangular core 66×186×86×206×9 mm
66×186×86×206×9 mm nanocrystalline rectangular core, Brown Crepe tape.

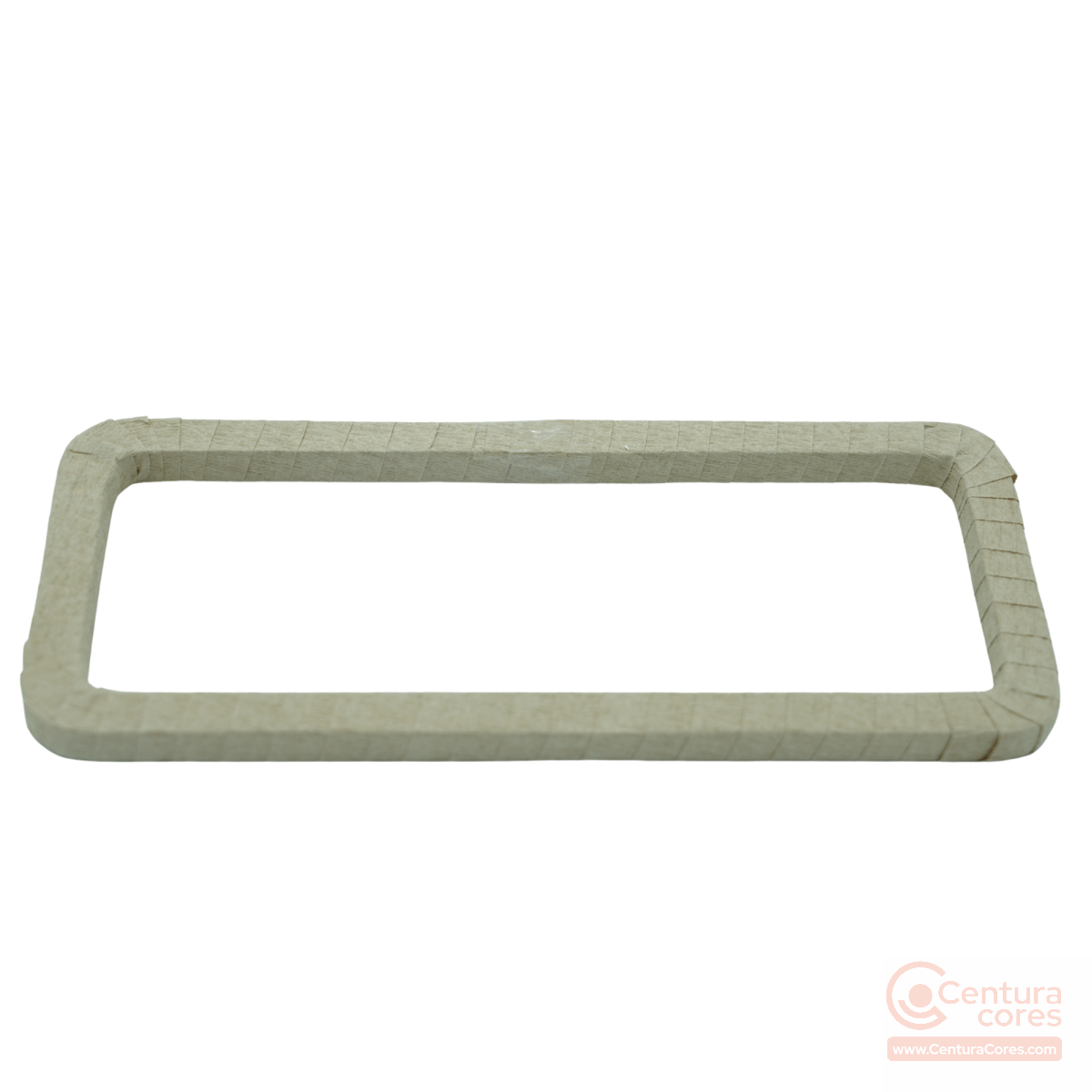

CCNRE-066-186-086-206-009-STBN is a 66×186×86×206×9 mm nanocrystalline rectangular core with Brown Crepe tape.
In stock
$55.441 piece
Choose a pack, set quantity up to 49 of this pack (49 pieces), then add to cart. When the cart has items, use the cart icon in the header to review them and keep shopping before checkout.
Loading checkout…
Volume pricing
Online packs are $10.00 minimum. Buy packs totaling under 50 pieces. 50+ is quoted.
| Pack / qty | Unit price | How to buy |
|---|---|---|
| 1 piece | $55.44 | Buy online |
| Pack of 3 | $52.67 | Buy online |
| Pack of 5 | $49.90 | Buy online |
| Pack of 10 | $44.35 | Buy online |
| 50+ pieces | Quoted | Request quote |
Technical Specifications
Bare core dimensions
Cased / finished dimensions
Magnetic properties
Finish and handling
Environmental

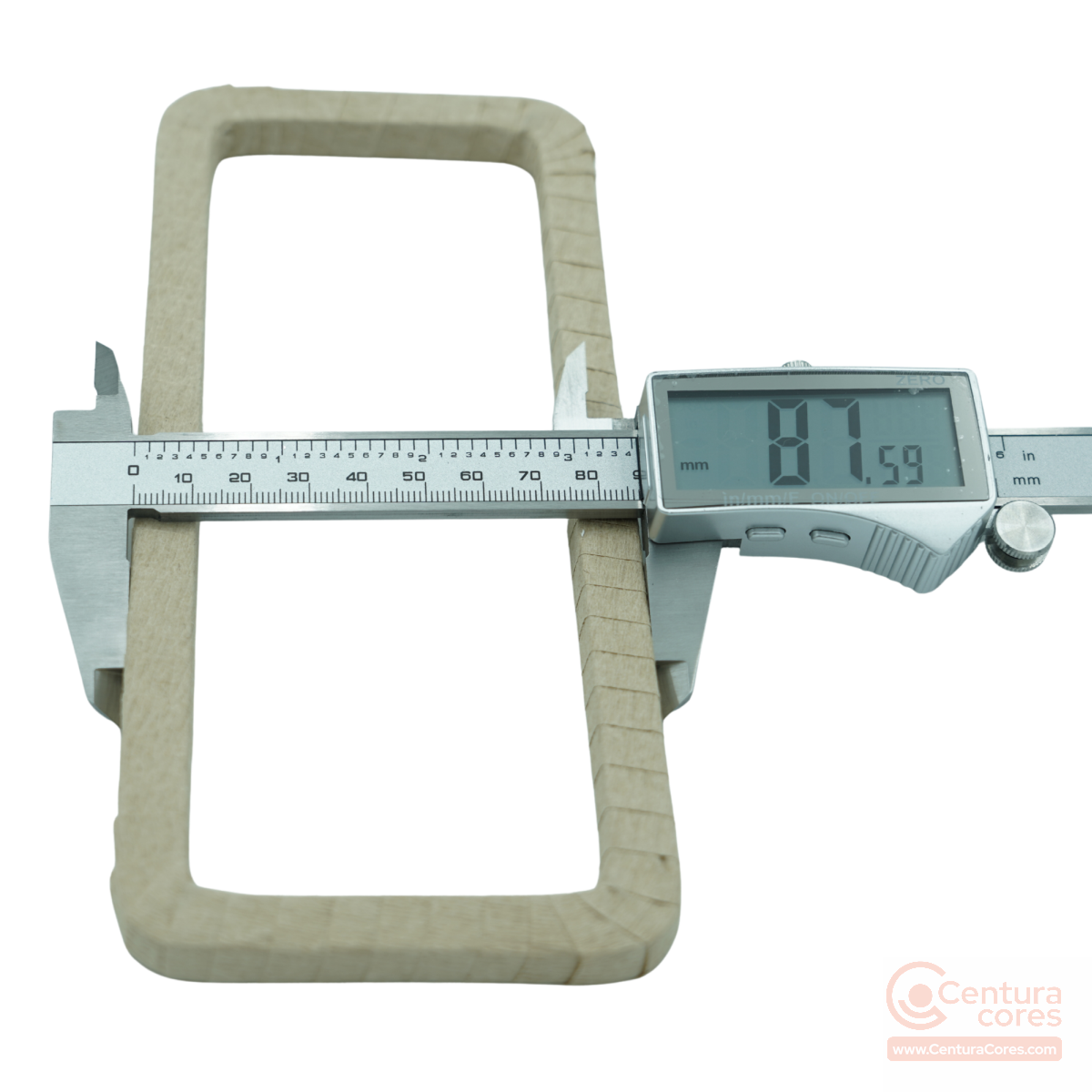

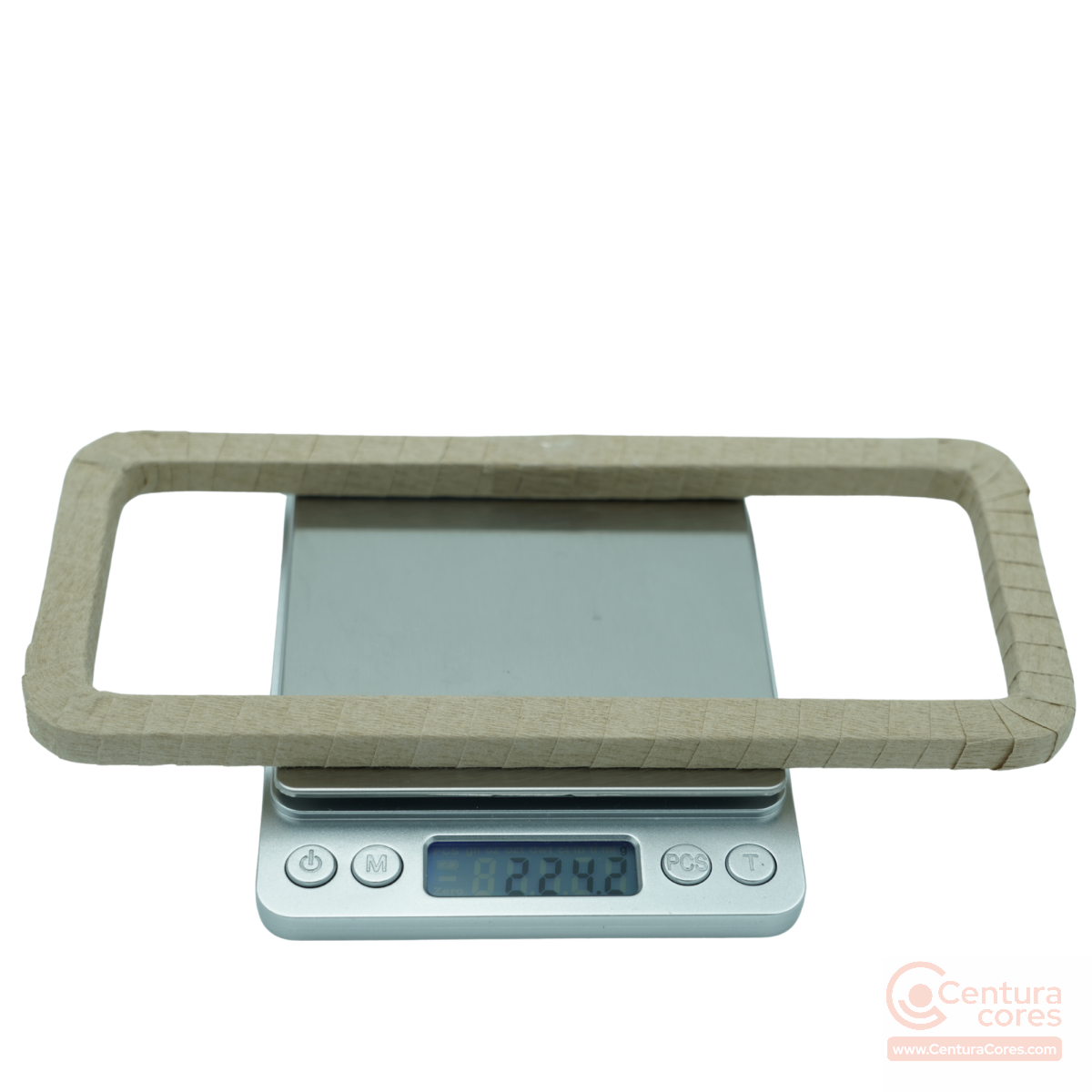

Product photos
Applications and selection
Recommended usage
- common-mode chokes
- busbar filters
- low-profile EMI filters
DIY & R&D usage
- DIY rectangular choke builds
- benchtop EMI filter experiments
Technical applications
- low-profile common-mode chokes
- busbar EMI filters
- flat-cable line filters
When to choose this size
Choose CCNRE-066-186-086-206-009-STBN when you need this 66×186×86×206×9 mm rectangular core. Use the bare dimensions for the magnetic path and the finished dimensions, when published, for winding clearance.
Winding notes
Magnetic calculations should use the bare 66×186×86×206×9 mm geometry. AL, Ae, and Le were not measured for this core. Saturation is 1.25 T.
Related application guides
Frequently asked questions
Are the stated dimensions bare or finished?
The size in the product name is the bare core. Finished dimensions are listed separately when they were measured.
Where is a core this size used?
This 66×186×86×206×9 mm rectangular core is a very flat, long-window choke. The 186 mm window (185 mm finished) and 9 mm height suit busbar EMI filters, flat-cable line filters, and low-profile common-mode chokes that must sit under a bus or a wide cable.
What finish is on this core?
This core is finished with Brown Crepe tape.
