Nanocrystalline toroidal core 32×20×15 mm
32×20×15 mm nanocrystalline toroidal core, White PBT Class B 130C.

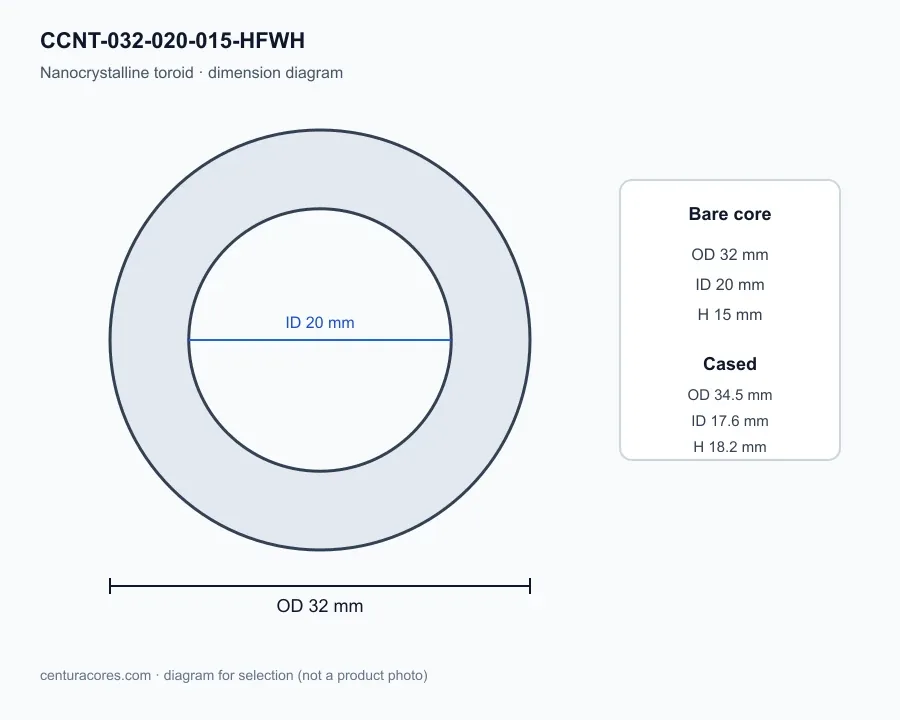

Soft-published ahead of stock. Expected availability October 20, 2026. The image is a dimension diagram; product photos will be added when inventory arrives.
CCNT-032-020-015-HFWH is a 32×20×15 mm nanocrystalline toroidal core for PV inverter EMI filters, motor drive chokes, and industrial line filters. Its nanocrystalline HF characteristic supports common-mode and EMI filter designs where impedance and winding window matter as much as size. Choose this size when the filter or choke needs this window and OD, not the next larger footprint.
Arriving October 20, 2026
$10.981 piece
This SKU is soft-published for selection and SEO. Product photos will be added when stock arrives. Request a quote now, or join the waitlist for an in-stock notice.
Technical Specifications
Bare core dimensions
Cased / finished dimensions
Magnetic properties
Finish and handling
Environmental
Applications and selection
Applications
- PV inverter EMI filters
- motor drive chokes
- industrial line filters
- UPS EMI suppression
- PV/wind inverter common-mode EMI filters
- motor drive/VFD output chokes
- industrial three-phase line filters
- UPS common-mode EMI suppression cores
When to choose this size
This 32×20×15 mm toroidal core is sized for PV inverter EMI filters and related designs in the nearby size family. Step down to the 30×20×15 mm core when board space, enclosure height, or a tighter footprint matters more than winding room. Move up to the 40×25×15 mm core when you need a larger outer diameter, winding window, or higher throughput than this part can comfortably support. In short, pick CCNT-032-020-015-HFWH when your design for PV inverter EMI filters fits this window and OD; pick a neighbor when compactness or power handling shifts the trade-off.
Winding notes
Magnetic calculations should use the bare 32×20×15 mm geometry (Ae 0.73 cm², Le 8.2 cm). The winding must fit the finished window: cased ID is 17.6 mm, not the 20 mm bare ID. Distribute common-mode windings evenly and keep leakage paths short for EMI filter performance. High permeability (μi 80,000) supports useful magnetizing inductance at practical turn counts; stay within 1.25 Tesla saturation and the -40°C to +130°C PBT Class B 130C limit.
Related application guides
Frequently asked questions
Are stated dimensions bare or cased?
The 32×20×15 mm size marked on the case is the bare core (OD × ID × H). Finished cased size is 34.5 × 17.6 × 18.2 mm. Use bare dimensions with Ae and Le for magnetic design, and the finished inner diameter for winding clearance.
Is this core suitable for EMI or common-mode filter work?
Yes. It is a nanocrystalline toroidal core commonly used for PV inverter EMI filters, including PV/wind inverter common-mode EMI filters. Size the turns and window for your common-mode impedance target while staying within saturation and temperature limits.
When should I choose a different size instead?
Choose the 40×25×15 mm core when you need more winding window, heavier wire, or higher throughput. Choose the 30×20×15 mm core when board space or a smaller footprint matters more than this 32×20×15 mm envelope.
Related products
Nanocrystalline toroidal core 30×20×10 mm
CCNT-030-020-010-HFWH
30×20×10 mm
View CCNT-030-020-010-HFWH specsNanocrystalline toroidal core 30×20×10 mm
CCNT-030-020-010-MFBL
30×20×10 mm
View CCNT-030-020-010-MFBL specsNanocrystalline toroidal core 30×20×12 mm
CCNT-030-020-012-HFWH
30×20×12 mm
View CCNT-030-020-012-HFWH specsNeed this core for your application?
Get pricing, availability, and winding support for CCNT-032-020-015-HFWH.
