Nanocrystalline toroidal core 54×38×5 mm
54×38×5 mm nanocrystalline toroidal core, Brown Crepe tape.

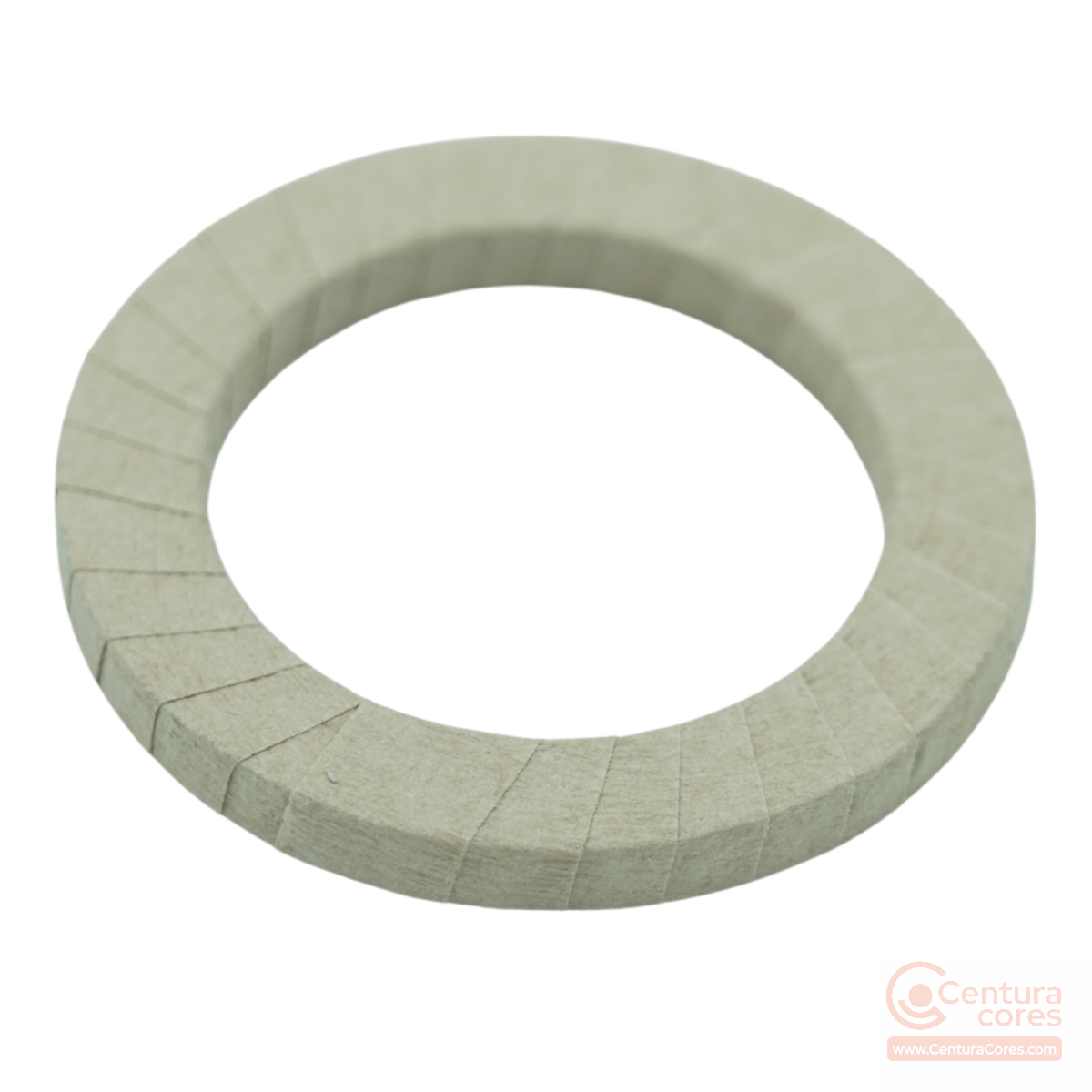

CCNT-054-038-005-STBN is a 54×38×5 mm nanocrystalline toroidal core with Brown Crepe tape.
In stock
$11.161 piece
Choose a pack, set quantity up to 49 of this pack (49 pieces), then add to cart. When the cart has items, use the cart icon in the header to review them and keep shopping before checkout.
Loading checkout…
Volume pricing
Online packs are $10.00 minimum. Buy packs totaling under 50 pieces. 50+ is quoted.
| Pack / qty | Unit price | How to buy |
|---|---|---|
| 1 piece | $11.16 | Buy online |
| Pack of 3 | $10.60 | Buy online |
| Pack of 5 | $10.04 | Buy online |
| Pack of 10 | $8.93 | Buy online |
| 50+ pieces | Quoted | Request quote |
Technical Specifications
Bare core dimensions
Cased / finished dimensions
Magnetic properties
Finish and handling
Environmental
Product photos
Applications and selection
Recommended usage
- small current transformers
- gate-drive transformers
- sensor cores
DIY & R&D usage
- DIY gate-drive transformer winding
- small current-transformer prototyping
Technical applications
- low-current instrument transformers
- gate-drive isolation
- precision current sensing
When to choose this size
Choose CCNT-054-038-005-STBN when you need this 54×38×5 mm toroidal core. Use the bare dimensions for the magnetic path and the finished dimensions, when published, for winding clearance.
Winding notes
Magnetic calculations should use the bare 54×38×5 mm geometry. AL, Ae, and Le were not measured for this core. Saturation is 1.25 T.
Related application guides
Frequently asked questions
Are the stated dimensions bare or finished?
The size in the product name is the bare core. Finished dimensions are listed separately when they were measured.
Where is a core this size used?
This 54×38×5 mm tape-wrapped toroid is a flat, large-window core for small current transformers, gate-drive transformers, and sensor cores. The 38 mm window and 5 mm height suit a cable used as a single-turn primary, or a low-profile pulse and isolation winding.
What finish is on this core?
This core is finished with Brown Crepe tape.
Need this core for your application?
Get pricing, availability, and winding support for CCNT-054-038-005-STBN.
