Nanocrystalline toroidal core 87×55×13.5 mm

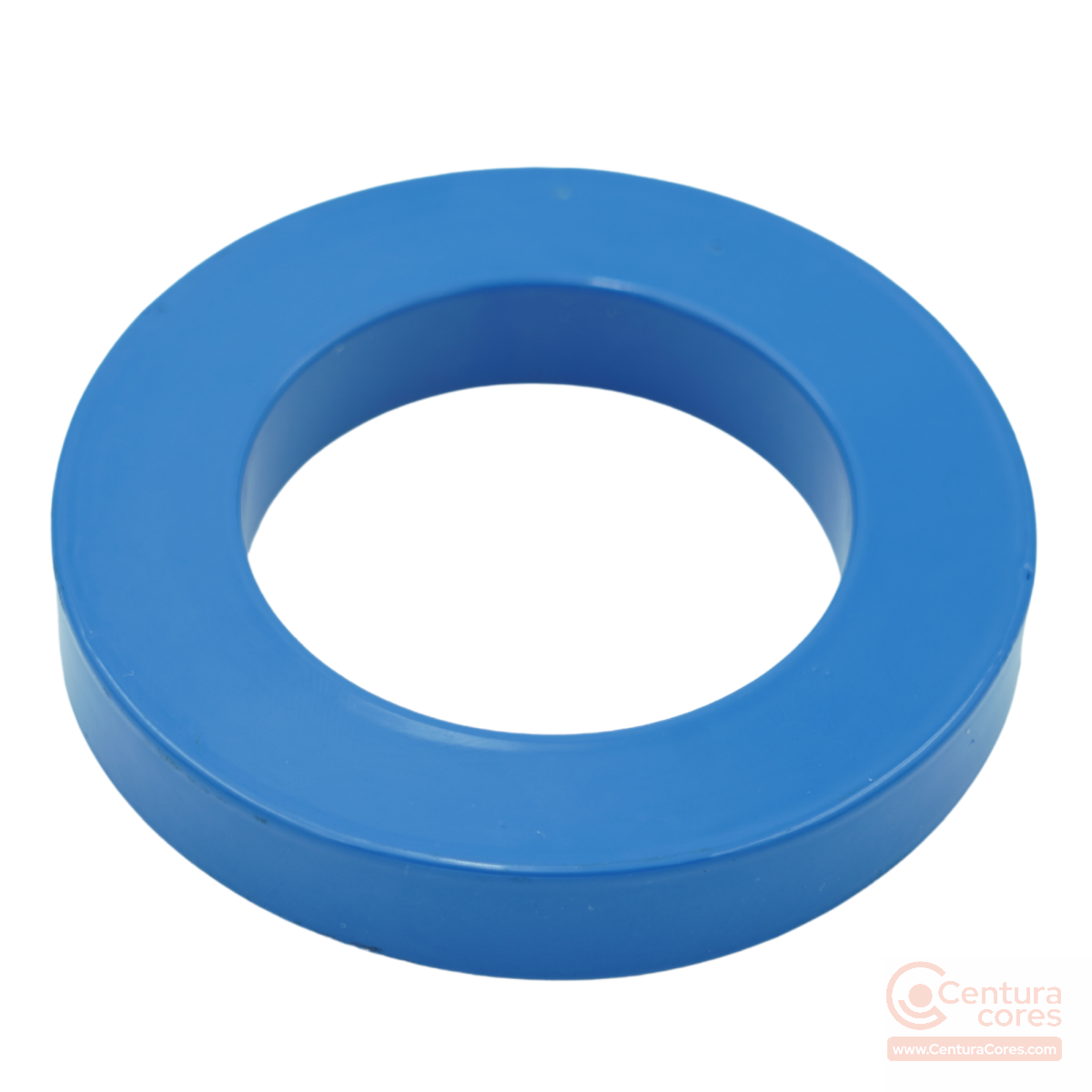

87×55×13.5 mm nanocrystalline toroidal core, Blue colored Powder Coating.
CCNT-087-055-013P5-STBL is a 87×55×13.5 mm nanocrystalline toroidal core with Blue powder coating.
In stock
$81.181 piece
Choose a pack, set quantity up to 49 of this pack (49 pieces), then add to cart. When the cart has items, use the cart icon in the header to review them and keep shopping before checkout.
Loading checkout…
Volume pricing
Online packs are $10.00 minimum. Buy packs totaling under 50 pieces. 50+ is quoted.
| Pack / qty | Unit price | How to buy |
|---|---|---|
| 1 piece | $81.18 | Buy online |
| Pack of 3 | $77.12 | Buy online |
| Pack of 5 | $73.06 | Buy online |
| Pack of 10 | $64.94 | Buy online |
| 50+ pieces | Quoted | Request quote |
Technical Specifications

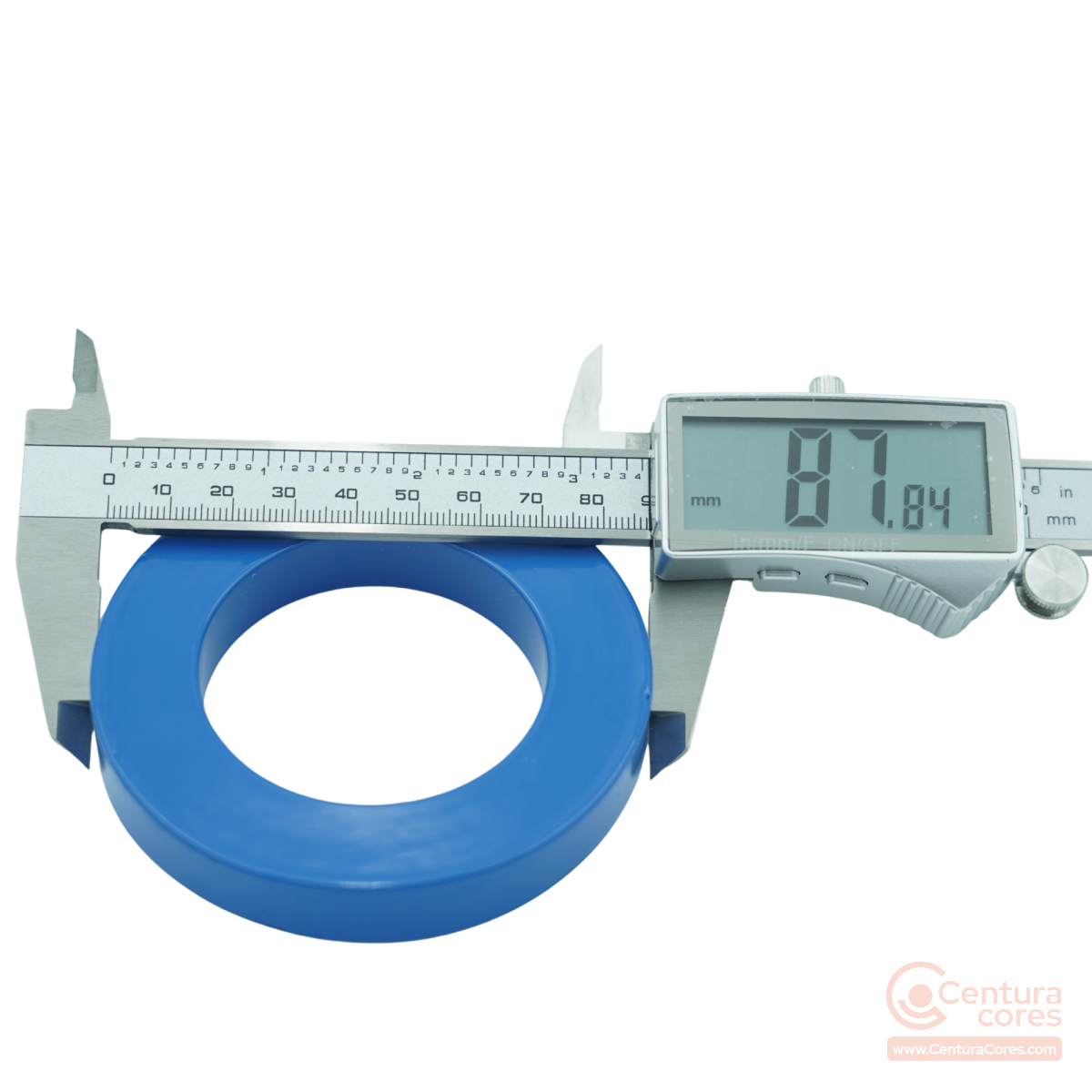

Bare core dimensions
Cased / finished dimensions
Magnetic properties

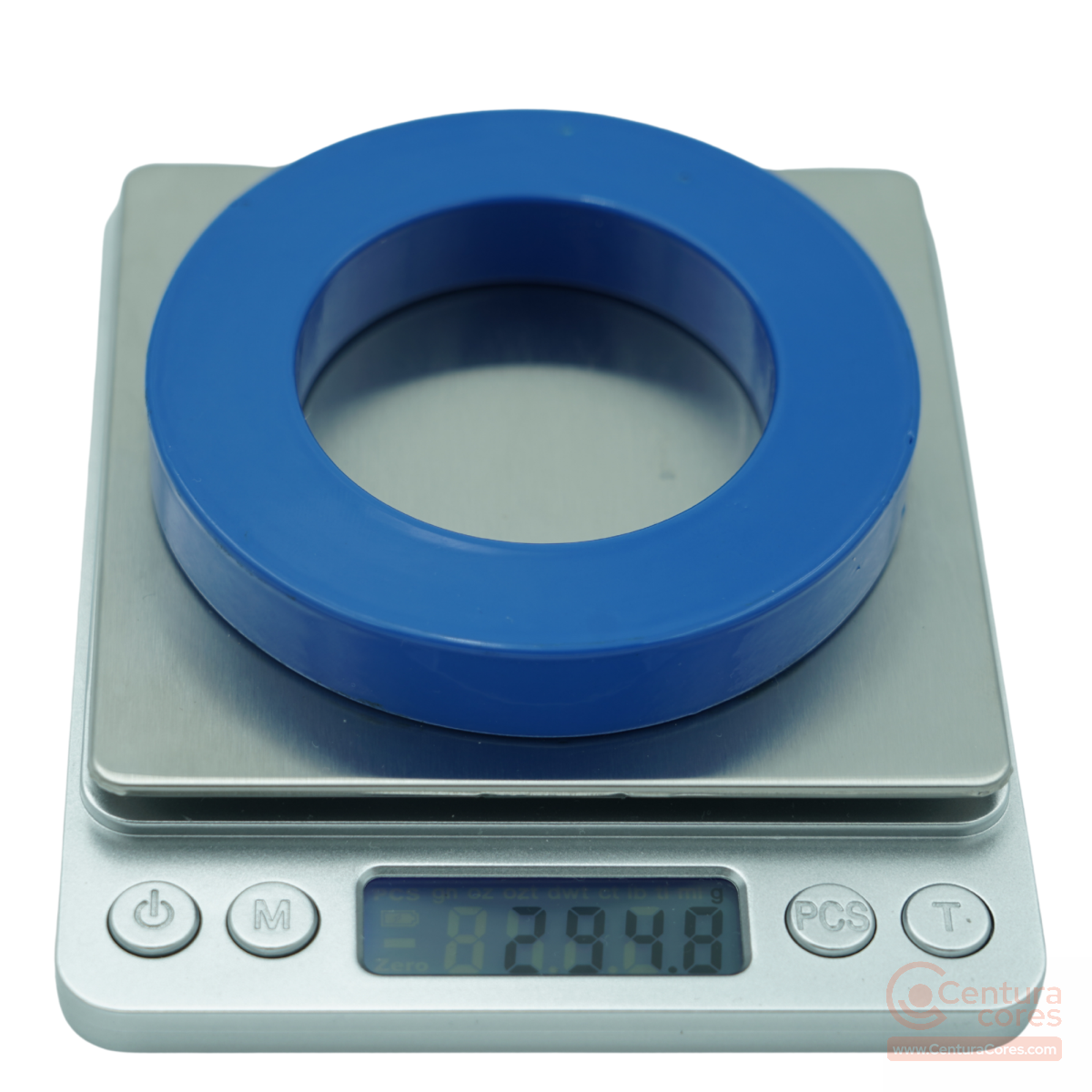

Finish and handling
Environmental
Product photos
Applications and selection
Recommended usage
- EMI filter chokes
- common-mode chokes
- inverter filters
DIY & R&D usage
- DIY common-mode choke winding
- benchtop EMI filter testing
Technical applications
- mid-power common-mode EMI chokes
- inverter input filters
- line filter cores
When to choose this size
Choose CCNT-087-055-013P5-STBL when you need this 87×55×13.5 mm toroidal core. Use the bare dimensions for the magnetic path and the finished dimensions, when published, for winding clearance.
Winding notes
Magnetic calculations should use the bare 87×55×13.5 mm geometry. AL, Ae, and Le were not measured for this core. Saturation is 1.25 T.
Related application guides
Frequently asked questions
Are the stated dimensions bare or finished?
The size in the product name is the bare core. Finished dimensions are listed separately when they were measured.
Where is a core this size used?
This 87×55×13.5 mm powder-coated toroid is a wide, low-profile core for EMI filter chokes, common-mode chokes, and inverter filters. The 54.5 mm finished window has room for several windings or a cable, and the 13.5 mm height keeps the choke flat in AC line filters and inverter input filters.
What finish is on this core?
This core is finished with Blue powder coating.
Need this core for your application?
Get pricing, availability, and winding support for CCNT-087-055-013P5-STBL.
