Nanocrystalline race track core 49.5×144.5×59.5×154.5×15 mm
49.5×144.5×59.5×154.5×15 mm nanocrystalline race track core, Black Crepe tape and electrical tape.
CCNRT-049P5-144P5-059P5-154P5-015-STBK is a 49.5×144.5×59.5×154.5×15 mm nanocrystalline race track core with Black Crepe tape and electrical tape.
In stock
$33.841 piece
Choose a pack, set quantity up to 49 of this pack (49 pieces), then add to cart. When the cart has items, use the cart icon in the header to review them and keep shopping before checkout.
Loading checkout…
Volume pricing
Online packs are $10.00 minimum. Buy packs totaling under 50 pieces. 50+ is quoted.
| Pack / qty | Unit price | How to buy |
|---|---|---|
| 1 piece | $33.84 | Buy online |
| Pack of 3 | $32.15 | Buy online |
| Pack of 5 | $30.46 | Buy online |
| Pack of 10 | $27.07 | Buy online |
| 50+ pieces | Quoted | Request quote |
Technical Specifications
Bare core dimensions
Cased / finished dimensions
Magnetic properties
Finish and handling
Environmental

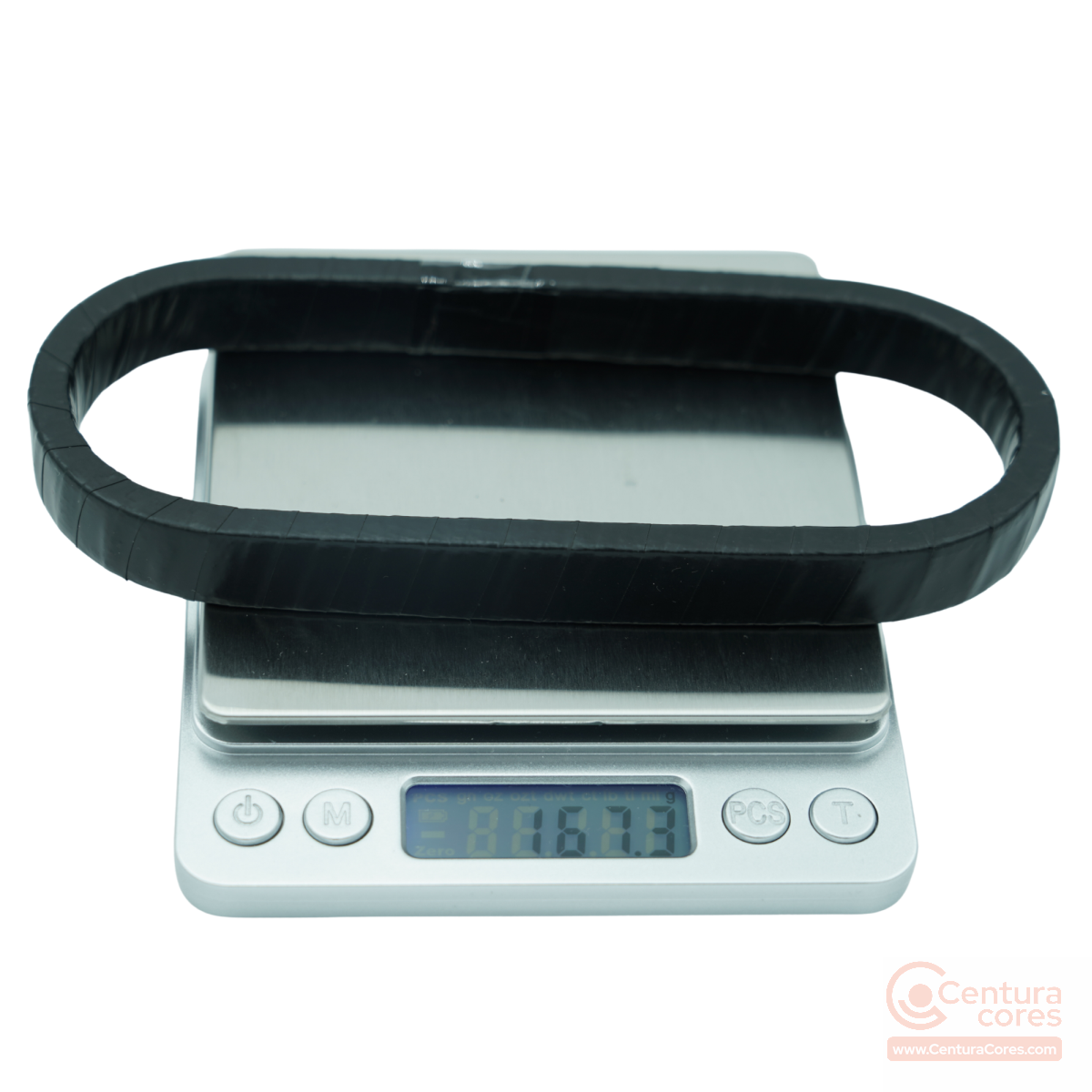

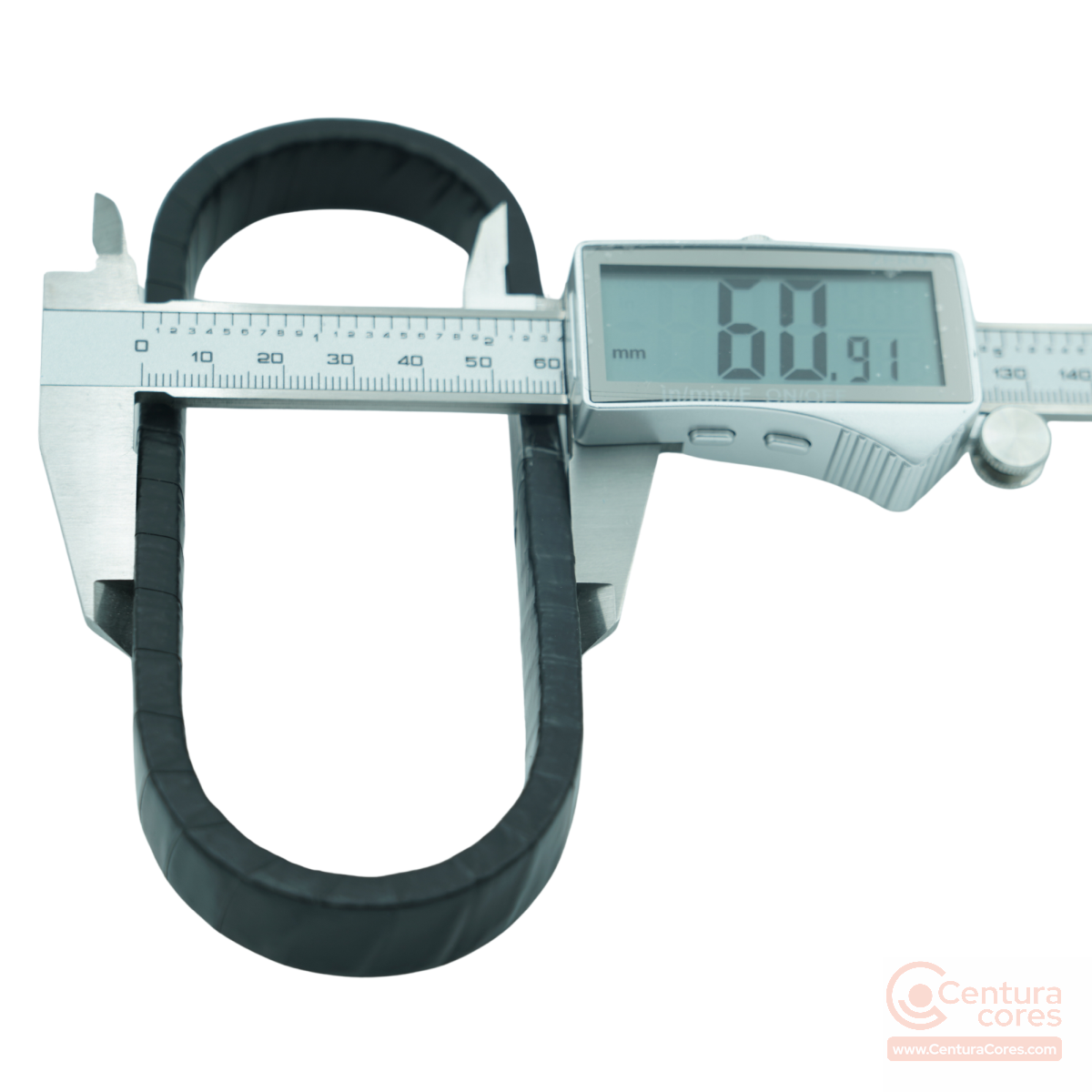

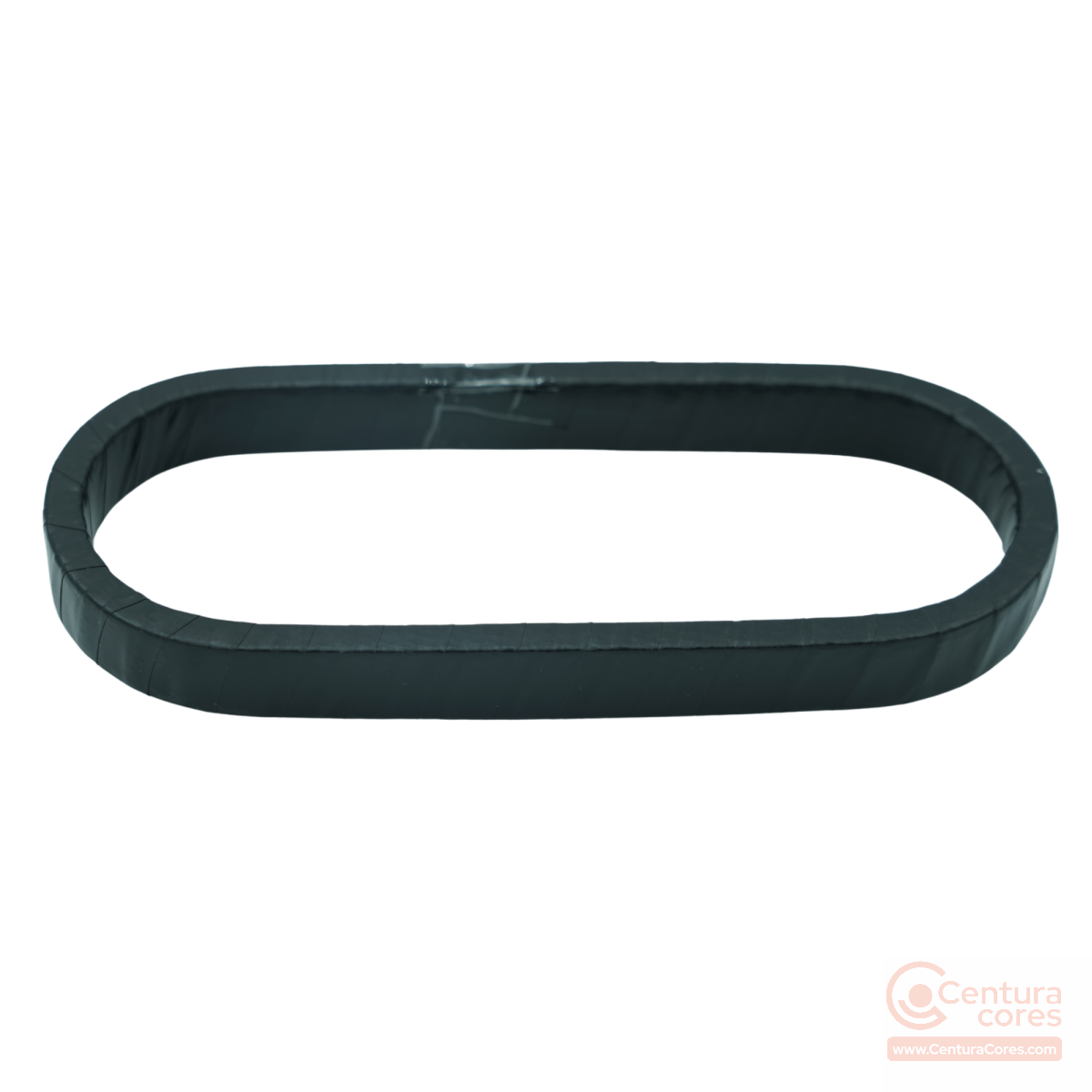

Product photos
Applications and selection
Recommended usage
- common-mode chokes
- EMI line filters
- cable-bundle filters
DIY & R&D usage
- DIY common-mode choke builds
- benchtop EMI filter experiments
Technical applications
- common-mode EMI filter chokes
- inverter input filters
- cable-bundle chokes
When to choose this size
Choose CCNRT-049P5-144P5-059P5-154P5-015-STBK when you need this 49.5×144.5×59.5×154.5×15 mm race track core. Use the bare dimensions for the magnetic path and the finished dimensions, when published, for winding clearance.
Winding notes
Magnetic calculations should use the bare 49.5×144.5×59.5×154.5×15 mm geometry. AL, Ae, and Le were not measured for this core. Saturation is 1.25 T.
Related application guides
Frequently asked questions
Are the stated dimensions bare or finished?
The size in the product name is the bare core. Finished dimensions are listed separately when they were measured.
Where is a core this size used?
This 49.5×144.5×59.5×154.5×15 mm race track core is a shorter long-window choke for the same job. The 144.5 mm window (142.5 mm finished) fits a smaller cable bundle or flat conductor set in EMI line filters and inverter input filters, with a 15 mm height for a low stack.
What finish is on this core?
This core is finished with Black Crepe tape and electrical tape.
