Size marking on the case is the bare core dimension (OD × ID × H), not the cased or finished size.
Nanocrystalline race track core 61×250×85×266×20 mm

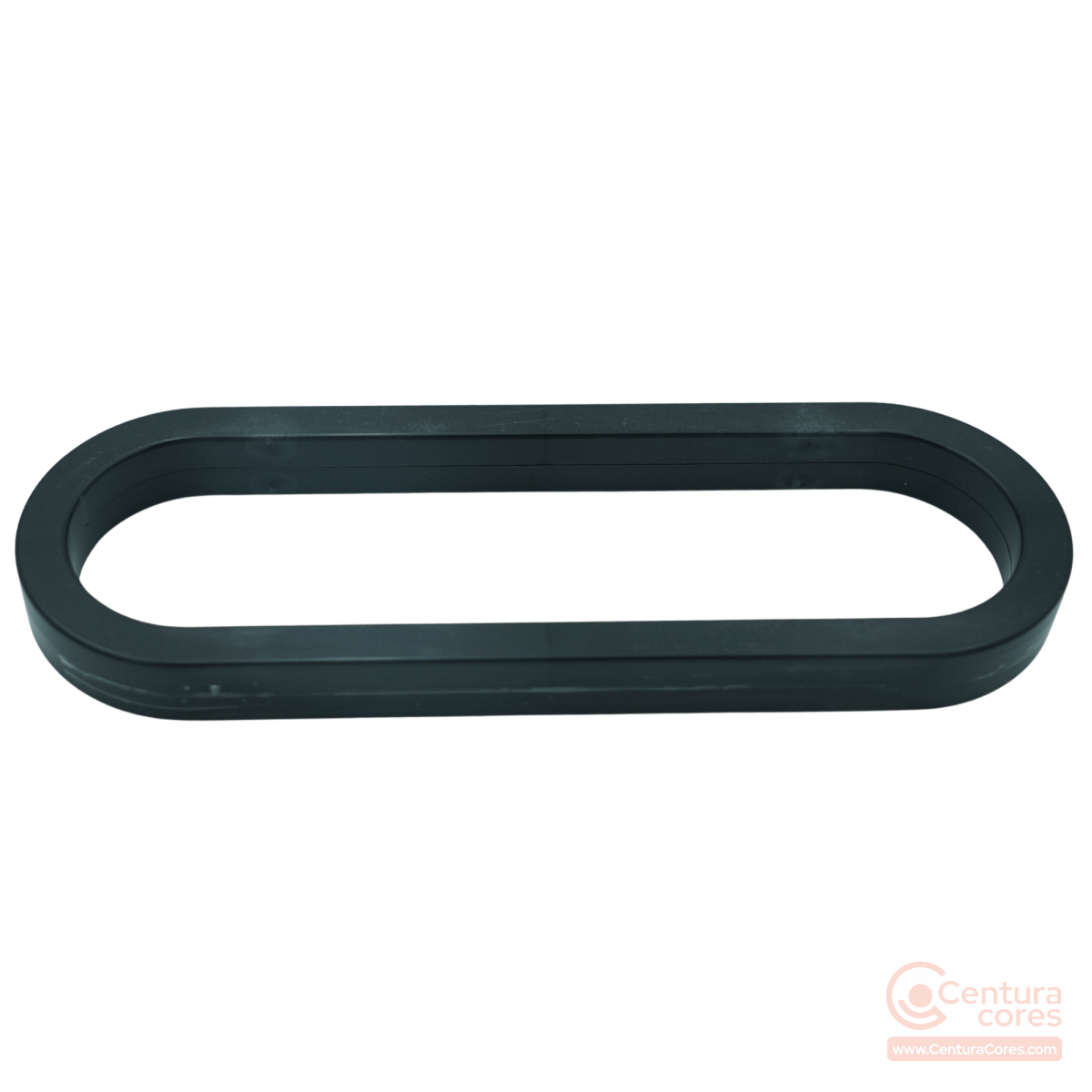

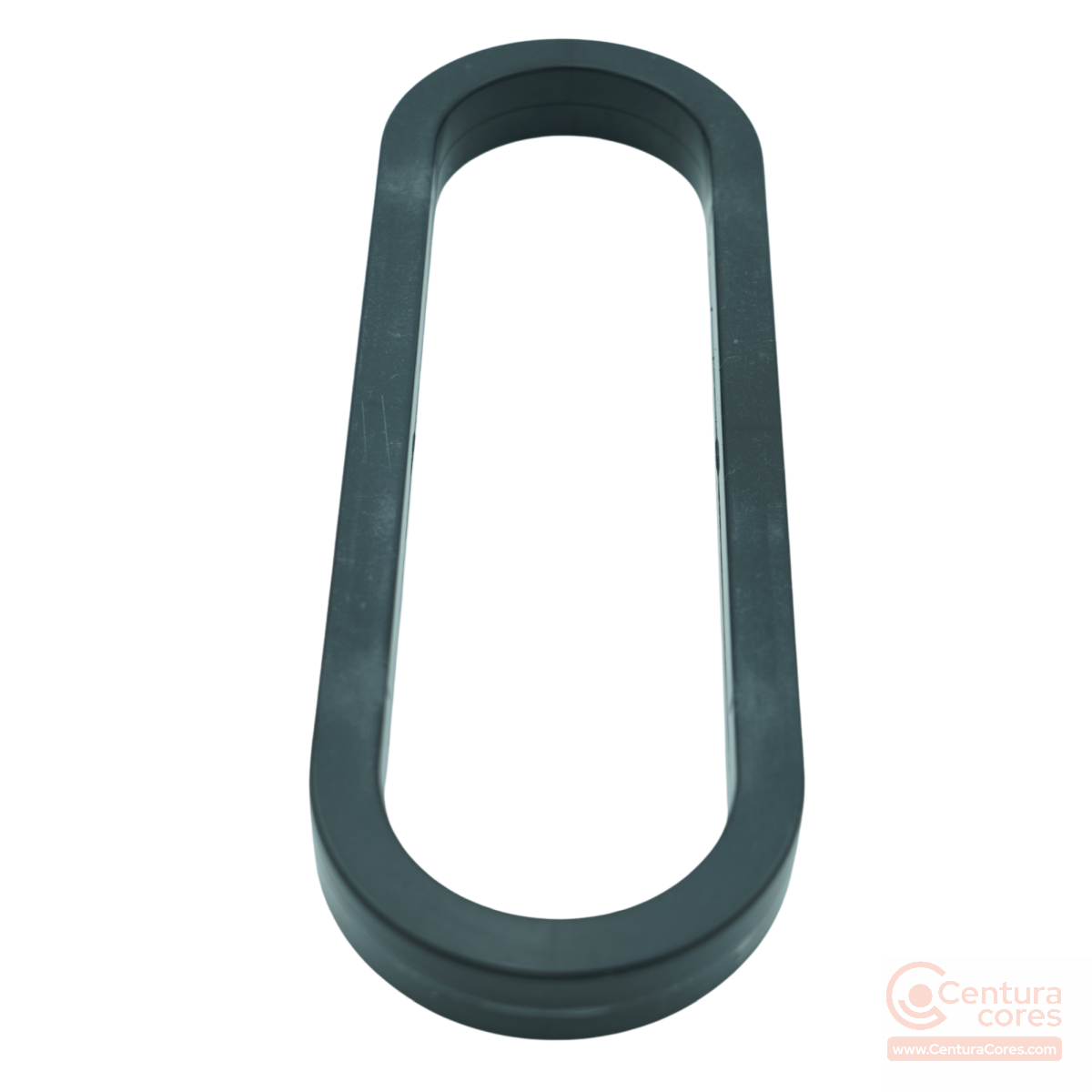

61×250×85×266×20 mm nanocrystalline race track core, Black PBT Class B 130C.
CCNRT-061-250-085-266-020-STBK is a 61×250×85×266×20 mm nanocrystalline race track core with Black PBT Class B 130C.
In stock
$79.021 piece
Choose a pack, set quantity up to 49 of this pack (49 pieces), then add to cart. When the cart has items, use the cart icon in the header to review them and keep shopping before checkout.
Loading checkout…
Volume pricing
Online packs are $10.00 minimum. Buy packs totaling under 50 pieces. 50+ is quoted.
| Pack / qty | Unit price | How to buy |
|---|---|---|
| 1 piece | $79.02 | Buy online |
| Pack of 3 | $75.07 | Buy online |
| Pack of 5 | $71.12 | Buy online |
| Pack of 10 | $63.22 | Buy online |
| 50+ pieces | Quoted | Request quote |
Technical Specifications
Physical dimensions
Magnetic properties
Finish and handling
Environmental
Product photos
Applications and selection
Recommended usage
- common-mode chokes
- inverter input filters
- busbar EMI filters
- cable-bundle filters
DIY & R&D usage
- DIY common-mode choke winding
- large-window choke prototyping
- benchtop inverter filter tests
Technical applications
- single-phase and three-phase common-mode EMI chokes
- motor-drive input filters
- busbar and cable-bundle common-mode filters
When to choose this size
Choose CCNRT-061-250-085-266-020-STBK when you need this 61×250×85×266×20 mm race track core. Use the bare dimensions for the magnetic path and the finished dimensions, when published, for winding clearance.
Winding notes
Magnetic calculations should use the bare 61×250×85×266×20 mm geometry. AL, Ae, and Le were not measured for this core. Saturation is 1.25 T.
Related application guides
Frequently asked questions
Are the stated dimensions bare or finished?
The size in the product name is the bare core. Finished dimensions are listed separately when they were measured.
Where is a core this size used?
This 61×250×85×266×20 mm race track core is a long-window common-mode choke. The 250 mm window passes a busbar or a large cable bundle, which is the usual geometry for inverter input filters, busbar EMI filters, and three-phase cable-bundle filters. The 20 mm height keeps the choke low while the long slot clears the conductors.
What finish is on this core?
This core is finished with Black PBT Class B 130C.
Need this core for your application?
Get pricing, availability, and winding support for CCNRT-061-250-085-266-020-STBK.
